Saturday 17 April 2021

Some New Grip Fids.

How Do All,
Whilst busy making cord making machines, I also made up some Gripfids for a customer to go with their machine, which they requested the handle to be left off so that they may possibly carve their own.
Whilst I was at it I decided to make a new set of Gripfids for myself as I sold all but one of mine to a customer that was desperate to get hold of them.

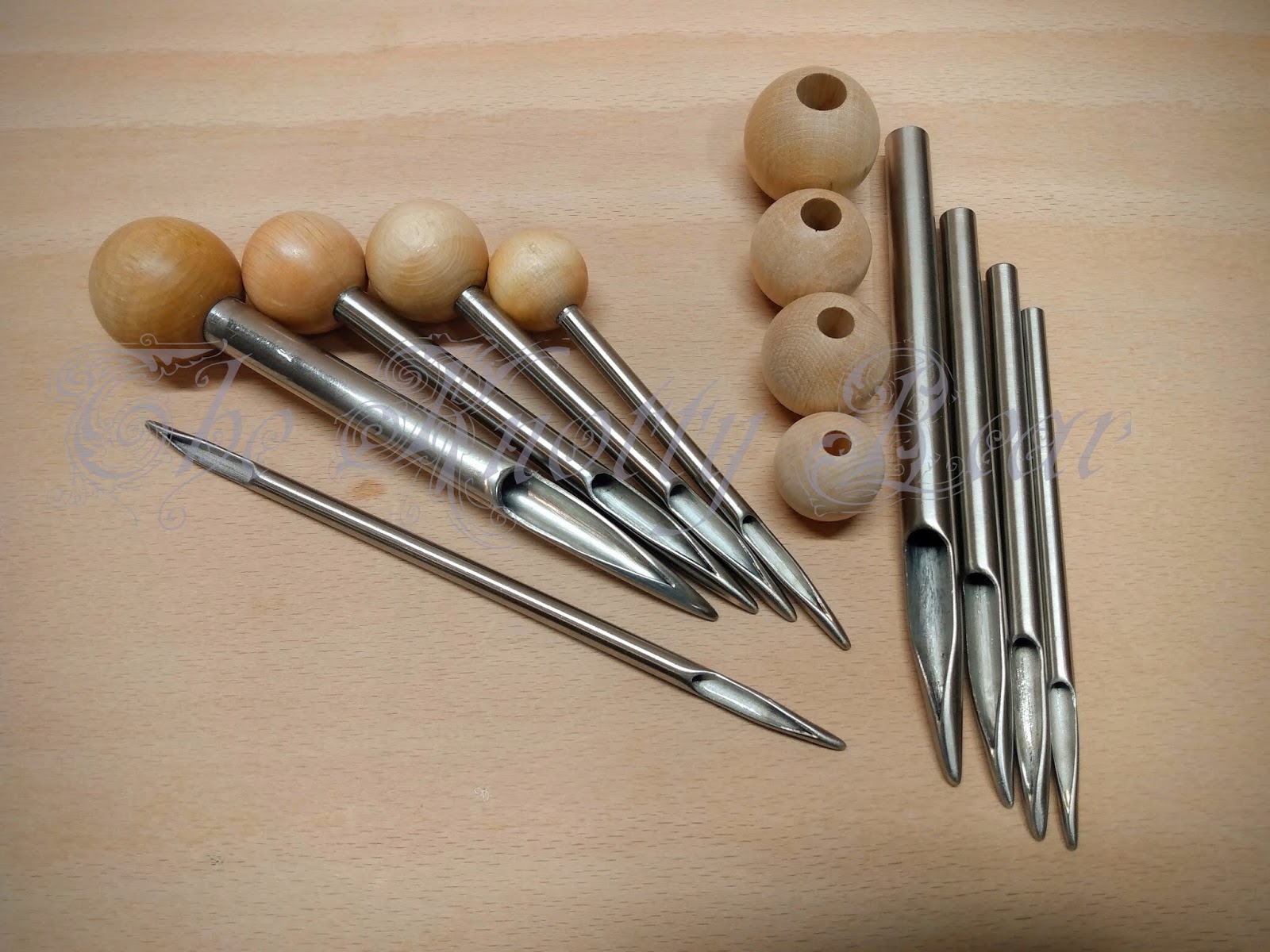

There are 1/4", 5/16" ,3/8" and 1/2" diameter Gripfids here.
I also made a small 1/4" double ended Gripfid which I am sure will prove unnecessarily useful!

I covered one of my smaller Gripfids with a 5 Pass, Type 5 Pineapple Knot, with a varied interweave.
I love these knots, probably my favourite knot to tie and I tie them with no instructions, just straight out of my head and into my hand.

Along side a large covered net float which I found on Walney Island many years ago.
this is another Pineapple knot with a varied interweave.

Like a star flower

The knot is made up from 5 separate 6 bight x 7 lead Turk's-Head Knots or Casa Knot if you like.
Tied in 1.5mm polypropylene twine.

Thank you for looking.
Take care,
Barry

Sunday 21 March 2021

Refurbishment of a customers 140 year old Chest Beckets

How Do All,
I was recently sent a pair of around about 140 year old antique sailors sea chest beckets for refurbishment.
This is something I have not done before, and had both beckets been in better condition I would have opted to preserve them rather than refurbish them.

The owners of the beckets also have the original chest and cleats which they have now refurbished themselves.
Both the chest and beckets still belong to descendants of the original owner. and they actually have lots of original paperwork giving the name and dates of the sailors birth, his travels, and also his passing; I think this is absolutely amazing that these have survived for over 140 years, are still together, and in the same family.
The Able-Bodied Seaman John Lewis was born in 1866.
You can see some pictures of the finished chest, and also some of the documentation shown at the end of this post, with kind permission of the owners. Thank you.

The chest and beckets had been covered in white gloss and other modern type paints over the years, and about thirty years ago the current owners had a go at removing the paint from one of the beckets, hence why the two look very different in the before pictures.

The chest, cleats and beckets.
Photo with kind permission of the owners.

The beckets as I received them.

Lovely white gloss over everything.

The other becket stripped bare.

Upon examining the beckets for myself, I discovered that the remaining bolt rope had been chafed through to the iron core, and the rope and tarred marline under the fragile and chafed leather had all but rotted to dust.
The pinked leather washers on one side had been stretched and the holes enlarged, cracking and splitting the dry leather in the process.

Chafed to the bone so to speak, from use and the harsh marine environment no doubt.

After the leather had been removed the end knots pretty much fell away of their own accord.


The six surviving pinked leather washers, the ones on the right had been enlarged by the becket legs pushing them outward and over the end knot of the bolt rope.

The perished remains of the surviving bolt rope, and one of the leather washers in the background.

On the still painted becket I carefully removed the outer layers of paint (I actually spent several days with paint stripper, white spirit, and methylated spirit baths and an a tooth brush or two) revealing what remained of possibly the original finish.
The original finish appeared to be a dark red ochre/oxide colour over the tarred marline bails (central handle part), the legs and eyes where in white, and the Turk's-Head knots in a vaguely greenish blue, the manrope knots on the ends of the bolt rope appeared to be the same blue but with a possibly later added red central part.

This was as far as I was willing to strip the good becket, and I wanted to save as much of the remaining finish as possible, had both been like this, then a clear coat to preserve this state would have been my preference.

On the left you can see the original red ochre/oxide colour over the tarred cord.

One of the end knots of the bolt rope showing the later? red centre, it looks as if the blue was painted over with white and then the red centre, but only the original owner/s would know for sure.

After soaking the misshaped becket for several hours I reshaped it as best as possible, but was not able to remove the lumps and bumps under the coving of the bail (handle part), and remaking the becket from scratch was not a viable or cost effective solution.

The reshaped becket on the left.
Also the makings of the new bolt ropes and a start on the pinked leather washers.

I made up two new bolt ropes from hemp rope over a rust-less steel core and, and made up twelve new pinked washers in 3 different sizes based closely on the originals.

Mocking up the new bolt ropes for size and looks.

After several coats of shellac and primer paint I opted to paint the beckets in colours I thought complimentary to the originals though not an exact match. and the deep teal colour used on the knots was a request from the customer, and I think a good call as the blue colour I was looking at would not have looked half as good in my honest opinion. (the teal knots are actually more green in real life, they appear more blue in the pictures)

Freshly finished with optional cleat fixing hardware.

I was not able to make the pair physically match, as they started out in very different states of repair, also when originally made by the sailor they may have not been made simultaneously so have different thicknesses of material as well as physical proportions, I am however very happy with how they turned out.

The chest  and beckets back together again.
Photo with kind permission of the owners.

The chest belonged to able-bodied seaman John Lewis
Photo with kind permission of the owners.

The opposite end of the chest.
Photo with kind permission of the owners.

Certification of service aboard the Barque "Lota" from the vessels Master
Photo with kind permission of the owners.

A telegram to Ann Lewis (wife) from the Barque "Lota"
I can only half read it at best.
Photo with kind permission of the owners.

Certification of service aboard the vessel "Indian Empire" from the vessels Master.
Photo with kind permission of the owners.

Thank you for looking,
Take care,
Barry / The Knotty Bear

Friday 26 February 2016

Knotty Bear getting all Knotty again!

How Do All ;-)

So, it's been a while since I did anything new on the knotting front, and when I get the urge to tie something I don't hold back!
I decided to tie a long pineapple knot with a varied pattern, just to make sure I was still on top of my game.

Below is a picture the finished Pineapple Knot being examined by Buddha.
I think he probably approves.


This is a 90 part x 48 bight, 6 Pass, Type 6 Pineapple Knot, with a varied interweave, tied over a beach combed fishing net float which I found on the beach near my old home town of Barrow-In-Furness

There are loops at each end formed from one long length of 10 strand trapezoidal braid U6, O2, spliced and stitched into a continuous strop.

There are two 12 part x 12 bight, 2 Pass, Type 2 Pineapple Knots sitting either side of the main knot, with a foundation of 8 bight, Single Strand Matthew Walker Knots.

All tied in 1.5mm line.

The braiding of the 10 strand trapezoidal braid in my braiding clamp.

The total length is 190 mm (7.5") x 45 mm (1.75") This would make one very large and very buoyant key fob for your boat keys, or a very nice light or fan pull handle, or the grip on a dirty bag, etc. etc..

The main Pineapple Knot is actually made up from 6 separate 15 part x 8 bight Turk's-Head knots, these are all interwoven into one single knotted covering. the fact this has a varied pattern makes it that much more special.

If you are a Knot Tyer and wish to try your hand at this interweave, or at least one very similar which is easily altered to make this interweave, bearing in mind you should be at least able to tie a standard multi pass Pineapple Knot, then please check out my help tutorial here: Pineapple Knot interweave tutorial. please note, this link will open a new window!

A close up of the finished Pineapple Knot, being examined by Buddha and in my hand for an idea of size

Thank you for looking,
Take care,
Barry ;-)

Tuesday 1 December 2015

My Etsy Store, Update #2! More New Items!

How Do All ;-)

I have just added some more new items to my Etsy Store Jewellery Section.
Rather than list every single item here in duplicate here are a few pictures of the items, and you can see the full details in my store. My Etsy Store

These are my beautiful Dragonfly Brooches!







Thank you for looking!
Take care,
Barry ;-)

Thursday 6 November 2014

A Pineapple Knot Variation. Links Fixed!

How Do All ;-)

Just a quickie!
I was unaware that the links to the pdf  file for the below Help Tutorial were broken and the file was no longer where it was stored,
I have now uploaded the pdf to my Google Drive and the links on my Tutorials and Help page all work again
Sorry to anyone that tried the links and found nothing of any help! And thank you to Graham for pointing this out to me :-)

I copied the tutorial information here to save you having to open yet another window :-D

Thank you for looking.
Take care,
Barry ;-)

A Pineapple Knot Variation.

Click above for the pdf file which includes the Under / Over sequence and some help pictures to enable you to add the white interweave variation to a *27 part x 24 bight 3 pass, Type 3 Pineapple knot.


Please note: the finished knot will be a 42 part x 48 bight, 6 pass, Type 3 Pineapple knot pictured above.
*You will need to be able to tie the mentioned 3 pass, Type 3 Pineapple knot unaided before you start.

Below: is a 7 pass, Type 4 knot made using the same interweave pattern.

Below: is a 4 pass, Type 3 knot made using a variation of the same interweave pattern.

Tuesday 26 February 2013

More Gripfids

How Do All ;-)

I just finished covering a set of Gripfids for a customer in Switzerland.



The tools are 6mm, 8mm and 10mm diameter, suitable for up to 4mm, 6mm and 8mm cords respectively,

 The tools have a solid Maple handle, covered with a beautiful Pineapple knot.
The smallest is a 35p x 30b, 5 Pass, Type 5 Pineapple knot, the next is a 36p x 32b, 4 Pass, Type 4 Pineapple knot, and the largest is a 45p x 40b, 5 Pass, Type 5 Pineapple knot.


A close up of the Pineapple knot handles.

I made some Pojama's (covers) for the Gripfids from odd ends of climbing rope with the core stripped out.
practical or not? who knows ;-)

For more info about, and pictures of Gripfids see the link below:
And to see some of the items I have made using Gripfids, check out my Ply-Split Braiding page



Please contact me if you have any questions: knotty (dot) bear (at) gmail (dot) com

Please check out my Etsy Shop for more items.

Thank you for looking.
Take care,
Barry ;-)

Tuesday 20 November 2012

Some Grip Fids for Sale!

How Do All ;-)

I have just added some of my hand made Gripfids to my Etsy Shop

This is a must have tool for Ply-Split Braiding, and is also and ideal tool for all other kinds decorative knot work.

The Gripfid is made from seamless Stainless Steel tube, and has a long slender hollow point, which is formed in such a way that it will grip onto a cord end that is inserted into the tip. which holds the cord whilst pulling the tool back through the work piece.
This tool can also be used in a similar way to a marlinespike or Swedish fid and will make a fantastic addition to any knot tyers tool kit.



I have these tools tools in 6mm, 8mm and 10mm diameter suitable for up to 4mm, 6mm and 8mm cords respectively, some are available in longer or shorter lengths.


 The tools are supplied with either a naked solid Maple handle, or covered with a beautiful Pineapple knot.
Below is a 5 Pass, Type 5 Pineapple knot, with a special variation of the standard interweave.

 Above and below you can see how the tool is use for Ply-Split Braiding.
The tip of the Gripfid is easily passed through the ply's of the cords, then the cord is inserted and the tool withdrawn pulling the cord with it. and building a beautiful braid.
This tool can be used in this way for splicing as an alternative to the Swedish fid or for tying multi strand decorative knots.

Please contact me if you have any questions: knotty (dot) bear (at) gmail (dot) com

Please check out my Etsy Shop for more items.

Thank you for looking.
Take care,
Barry ;-)


Friday 2 November 2012

Oldies But Still Goodies!

How Do All ;-)

Whilst waiting for a delivery today, I was browsing through some old pictures from 2005 / 2006, and came across some pictures of some nice earrings I used to make, so I thought I would share them with you.

Here are some single strand, modified 8 bight spherical Turk's-head knots, some single strand 8 plait grommet knots and some 4 Pass, Type 4 Pineapple Knots. All are made in 0.8mm braided cord, and to give an idea of size the finished knots are all around 12-15mm diameter.

Top row, single strand, modified 8 bight spherical Turk's-head knots.
Middle, 3 strand, modified 8 bight spherical Turk's-head knots.
Bottom row, 4 pass, Type 4 Pineapple Knots.

Single strand 8 plait grommet knots, and the last pair are 2 knots combined. these are all tied over the end of a finger!

 Single strand 8 plait grommet knots, close up.

 Single strand 8 plait grommet knots, close up.

I made dozens of pairs of each, and either sold or gave these away as presents, so it was nice to see them again even if only the pictures ;-)

Thank you for looking.

Take care,
Barry ;-)
